CERTIFIED • EXPERIENCED • RELIABLE

Gate Assessment

protect people and property from entrapment and injury

Is Your Gate System Up to Code?

Why Compliance Matters: The gate industry has undergone significant regulatory changes focused on safety. Whether you have a residential or commercial gate system, it's important to know where your equipment stands. Very few power gate opener systems currently installed meet these requirements — and non-compliance can leave you exposed to liability.

Codes & Standards We Work With:

  • UL-325 — Safety standard for door, drapery, gate, louver, and window operators and systems
  • ASTM F2200 — Addresses construction and installation standards for all gate types, including specific requirements for each gate style
  • International Building Code (IBC) — 2009 Edition and later
  • International Fire Code (IFC) — 2009 Edition and later
  • International Residential Code (IRC) — 2012 Edition and later
Find Out If My Gate Is Up to Code

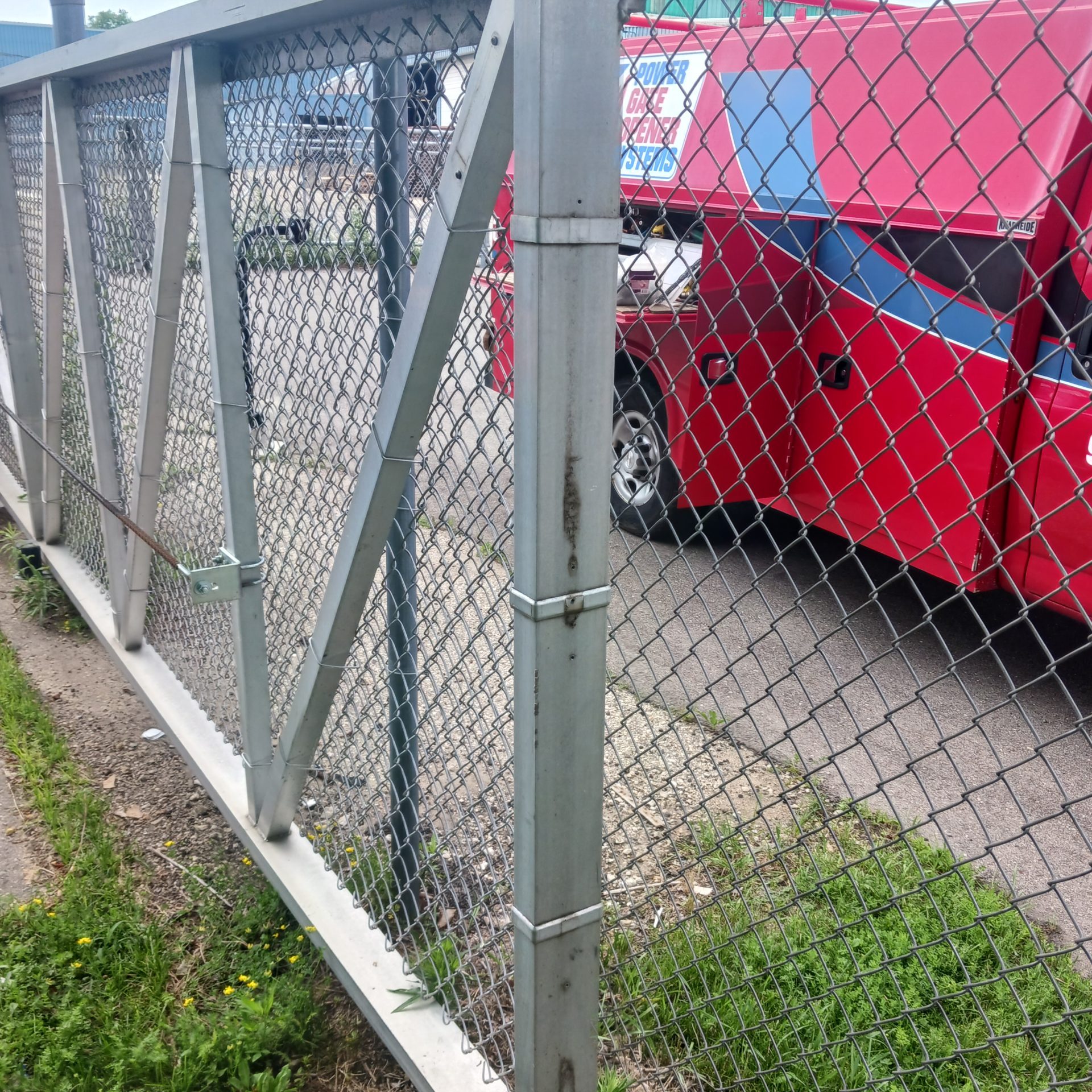

pgos-chain-link-gate-frame-installation

Certified & Compliant With Industry Leaders

UL certification mark indicating safety compliance for gate automation equipment.

Underwriters Laboratory (UL)

Professional gate assessment for automation systems in Wisconsin and Illinois.

American Society for Testing and Materials (ASTM)

Professional gate assessment by certified automation experts in Wisconsin and Illinois.

Institute of Door Dealer Education and Accreditation

Automated gate system for enhanced security and convenience at a private home.

Gate Requirements What Every Gate System Must Meet

Structural & Physical Requirements:

  • Gates must have auxiliary supports to prevent tipping more than 45 degrees from vertical (ASTM F2200, para 4.2)
  • Gates must be properly balanced so they do not open or close on their own when disconnected from the operator
  • No protrusions greater than one-half inch are permitted on the bottom vertical edge — and no protrusion of any length may have sharp edges

Allowable Protrusions Include:

  • Top pickets and decorative designs
  • Gate locks, wheels, and positive stops on horizontal slide gates
  • Bottom retainers in Class IV horizontal slide gates
  • Positive stops at the top of vertical lift gates

Security Fencing Requirements:

  • Barbed wire must be installed no lower than six feet in height
  • Barbed tape must be installed no lower than eight feet in height
  • These restrictions apply to any gate panel intended to be automated

Automated Gate Requirements:

  • All gate latches must be disabled on automated gates
I Want to Know Where I Stand

Ready to Bring Your Gate Up to Code?

Our certified team makes the process simple — from assessment to full compliance, we're with you every step of the way.

What's Included in Your Gate Assessment:

  • Your assessment will be completed by a Certified Gate Installer and Designer
  • We'll provide personalized recommendations to bring your gate up to current codes and compliance standards
  • If you choose to have us complete the work, your assessment fee will be applied directly toward the project

Complete the contact form below or call us directly at 920-563-5233.
